OMNI Abutment CP/EL

OMNI System :

This versatile abutment can be used as for single crowns, bridges as well as full arch cases. This is possible thanks to the 1.8mm diameter bridge that supports lateral forces. The 45 degree shoulder abutment shoulder allows for up to 30 degrees of angulation and assist with the support of vertical loads.

Concave Esthetic Concept (CEC) :

A cuff diameter of 4mm and the abutment that follows the philosophy of the concave esthetic concept, facilitates prosthetics in esthetic zones while preserving peri-implant tissues.

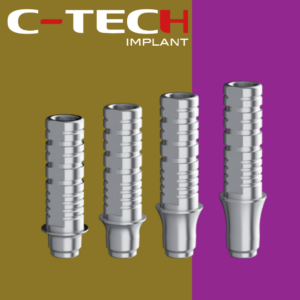

Titanium Base :

A uniquely shaped Unique Ti-Base which allows to choose between two different bonding options, long or short; as well as permitting an angled access screw channel of up to 25 degrees.

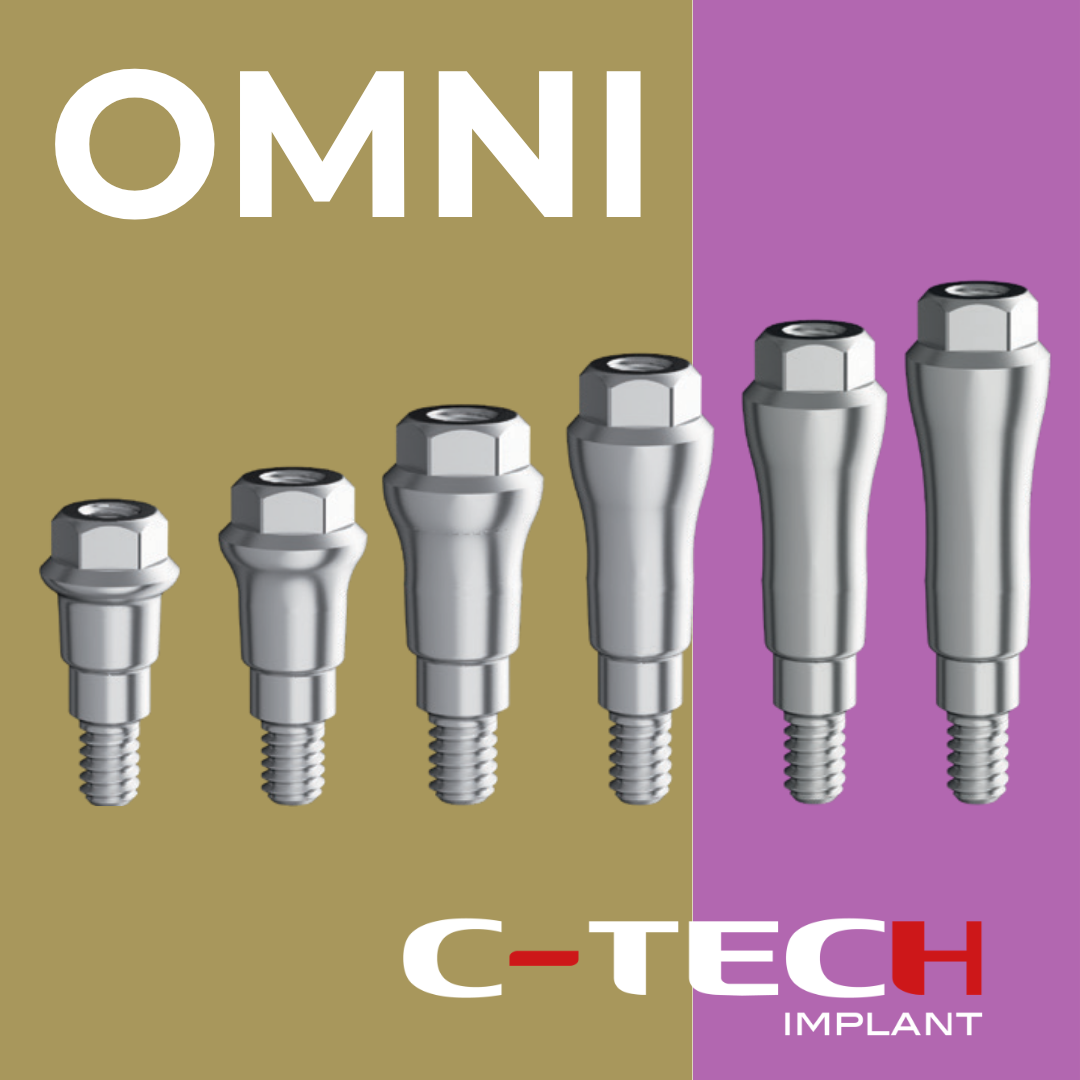

6 Different Heights :

TIGHTENING: with torque ratchet 25 Ncm

Material: Titanium grade 5

Prosthetic Advantages :

It can be used from a single crown to a full arch.

The 45° shoulder allows for a misalignment between implants of up to 30°.

The 1.8 diameter bridge screw (in comparison to 1.4mm MUA bridge screw) better supports lateral forces in the case of a two-unit bridge.

Up to 6 different gingival heights.

A single driver to screw in three different components: OMNI, MUA, and O-BALL.
